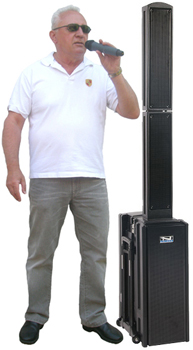

The Beacon Line Array Sound System from Anchor Audio requires
no training or tools. The patented line array tower can be opened in less than a minute. The enclosure includes three 8” woofers

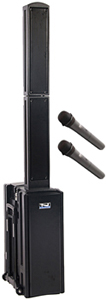

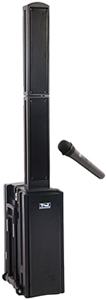

and an array of eight 4" mid-range speakers that deploys up to a height of 6’. Options include MP3 player and two wireless
microphones. With a conveniently built-in pull handle, wheels and storage compartments, the 51 lb. Beacon can easily be wheeled around.
Wireless UHF Microphones: Beacon sound systems may be equipped with one or two optional
built-in wireless UHF receivers, each with a separate volume control. To avoid potential interference should several wireless
sound systems be employed in close proximity, all UHF components have 16 user selectable channels. The wireless UHF microphone transmitters are available in the conventional handheld style and belt-pack style with choice of headband mic, over the ear UltraLite microphone, collar mic, or, lapel microphone. Typical transmission
range is 300 ft. To view microphone options, click on the "options" tab above the systems packages.

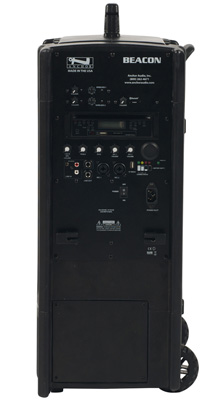

Inputs: All Beacon sound systems feature two balanced XLR phantom powered microphone
inputs and one line input. The Line input is accessible through a 1/4" jack, a 3.5 mm mini stereo jack and two conventional RCA connectors. Each of the three inputs have a separate volume controls providing
the user full control over the mix. The line level volume control also controls the MP3 player. For added flexibility, the the Beacon is also equipped with user adjustable bass and treble controls.
Voice over Music: As the ideal portable PA system, Beacon incorporates a voice
over music feature that allows the speaker to clearly be heard over music playback. When a microphone input is activated,
the line level input (usually background music from the MP3 player or external MP3/CD player) automatically is attenuated 12 dB.
MP3 Player: The optional MP3 player features all the controls of a conventional MP3 player and accepts SD Card and USB Flash Drive (max. 1GB). In addition,the MP3 player is equipped with a 3.5 mm mini-jack for connection of other audio
sources such as iPods, lap tops, etc.
Outputs: The Beacon features a 1/4" as well as a left/right RCA line level output for those wishing to record an event or simply daisy-chain two or more sound systems for
greater coverage. Wireless Beacon systems may be deployed as long as these are placed within the transmission range of the wireless microphones. If music playback is desired for multiple
wireless Beacon systems, a playback patch cord allows for hookup between a iPod, CD or cassette recorder and the belt-pack
transmitter. A 12 volt .5 Amp DC coax output jack can feed an external UHF-6400 receiver making it possible to operate three wireless microphones on battery power. A convenient USB port is also provided for charging of iPods, cell phones, etc.
Power: The rated power output is 150 watts in AC mode and 125 watts in DC mode. With true AC/DC power supply and a battery
operating time of 6-8 hours, the Beacon is truly versatile. A charge circuit recharges drained batteries in 7 hours for a full charge with LEDs displaying the charge condition. AC operating requirement is 100 - 240 Volts 50/60 Hz, 300 Watts max. The Beacon can
also operate from a 12 volt power source such as an auto power port.
- True AD/DC, 100/220V power supply
- 150W AC mode / 125W DC mode (peak wattage 300W AC mode / 250W DC mode)
- 120 dB of clear sound
- Reaches crowds of 5000+ indoor / 1000-2000 outdoor
- Up to two built-in 16 channel UHF wireless receivers
- "Voice over" music ducking feature
- Lightweight array tower has eight 4" speakers
- Base has three 8" sub woofers
- Proprietary class D amplifier
- Two universal input microphone input jacks
- Optional built-in MP3 player accepts SD card, USB flash drive or 3.5mm auxiliary input for iPod
- Charging LED bar indicator
- 5V USB charger
- Nylon mesh storage bag
- Durable enclosure case with wheels and retractable handle
- UV treated/fade resistant case
- Rated Power Output 150 watts AC / 125 watts DC
- Max SPL @ Rated Power 120 dB
- Battery Two 12 V rechargeable, 9.0 AH
- Full recharge: approx 7 hrs
- Frequency Response 60 Hz – 15 kHz ± 3dB
- Mic Inputs:
Lo-Z (1 Kohm), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 Kohms), unbalanced, 1/4” phone
- Hi-Z (10 Kohms), unbalanced, 1/8” stereo, 1/4” phone
- Line In/Out unbalanced, stereo RCA
- Line Output (post fader) isolated, 600 ohms, 1/4” phone
- Sensitivity For Rated Output:
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
- Phantom Power 36V
- AC Power Reqs. 100 – 240 VAC, 50/60 Hz, 300W max
- DC Out 12V 500mA
- USB 5V 500mA
- Dimensions Closed (HWD) 28.5” x 18” x 12.5” (72 x 45 x 31cm)
- Dimensions Opened (HWD) 71.5” x 18” x 12.5” (181 x 45 x 31cm)
- Weight 51 lbs / 23 Kg
Anchor Audio products are warranted to be free from defects in materials and workmanship for a period of 6 years from the date of original purchase unless listed below:
a. All microphones, belt pack transmitters, and wood products (Seville & Admiral) shall be warranted for a 2 year period.
b. Batteries in the Beacon, Liberty Platinum, MegaVox Pro, Explorer Pro and Acclaim sound systems shall be warranted for a 2 year period.
c. PortaCom / ProLink 500 headsets / belt packs and CouncilMAN bases / mics shall be warranted for a 2 year period.
d. Little Big Horn shall be warranted for a two year period.
e. Built-in MP3 or CD players shall be warranted for a 2 year period.
And all warranties are subject to the following conditions:
f. The product must have been purchased from an authorized Anchor Audio Dealer and have an Anchor Audio serial number.
g. Anchor Audio must perform all warranty service. Any service performed without Anchor Audio's authorization will void the entire warranty.
h. This warranty does not cover any product that has been subjected to negligent use including considerate damage, connection to an improper power source, misuse, or operated beyond its manufactured specifications and limits, or has not been reasonably maintained.
j. Warranty shall not apply to batteries (other than those mentioned above), exterior finish, AC power cords, bulbs, or any other failings due to normal wear.
k. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.
l. This warranty excludes all damages or defects caused by shipping transportation, or incorrectly packing for shipment.
