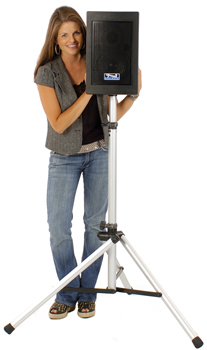

The Explorer Pro from Anchor Audio is perfect for sound
projection in indoor or outdoor settings and playback of music during activities. Explorer Pro delivers 109 dB of intelligible speech from one sound system and is designed for users with no technical knowledge. The simple control panel is virtually self explanatory and set up is fast and easy. Weighing in at only 23 pounds and with
an array of transporters and storage accessories, the Explorer is the ultimate solution for users who demand high fidelity
sound in an easily portable package.
Wireless UHF Microphones: Explorer PA systems
may be equipped with one or two optional built-in wireless UHF receivers. The volume of each of the wireless receivers are
controlled simply by pulling the dual function Mic 1 and Mic 2 volume control knobs. The wireless UHF microphone transmitters
are available in a handheld version and/or a body-pack equipped with choice of lapel mic, collar mic, headband mic, or, an
all new barely seen over the ear UltraLite microphone. To avoid potential interference should several wireless sound
systems be employed in close proximity, all UHF components have 16 agile user selectable channels. Typical transmission range
is 300 ft.
Inputs: All Explorer Pro models feature two balanced/unbalanced Mic/Line XLR
-1/4" input jacks. A third line level source may be connected through a 1/4" jack, stereo RCA jacks or a 1/8" mini jack.
The mini jack is particularly suited for iPods or Walkman style CD/cassette players that easily fits in a designated area

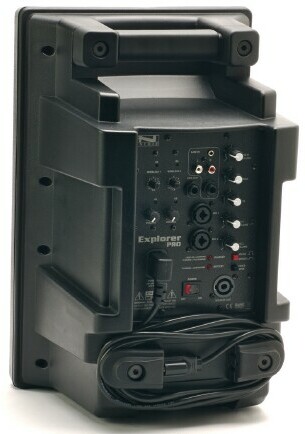

above the control panel (see rear view picture below). Each of the three inputs have a separate volume controls providing
the user full control over the mix.
Speech Projection and Voice Over Music: The Explorer features a speech projection mode for crystal-clear voice projection. Furthermore,
the Explorer also incorporates a Voice Over Music feature that allows the speaker to clearly be heard during music playback.
When a microphone input is activated, the line level input (usually music from a CD or cassette player) automatically is
attenuated 12 dB. Both features are easily activated with a simple push button switches on the control panel.
Outputs: The rated power output is 75 watts in AC/DC mode. A optional wired unpowered
companion speaker may be connected for more uniform sound distribution. However, with the use of wireless microphones there is no limit to how many wireless Explorer Pro systems may be employed, as long as these are placed within
the transmission range of the wireless microphones. If music playback is desired for multiple wireless speaker applications,
a special patch cord allows for hookup between a CD/cassette recorder and the belt-pack transmitter. For added flexibility,
the Explorer is also equipped with user adjustable bass and treble controls. In addition, the Explorer features a 1/4" line
out recording output for those wishing to record an event.
Power Source: The Explorer Pro is truly versatile with true AC/DC power supply
and improved battery life of up to 6 hours of operating time. With a rapid charging circuit it recharges drained battery
in as little as 60 minutes. It can also operate from a 12 volt power source such as an auto power port. LEDs display battery
level and charge condition. Optionally, all Explorer models are now available in "AC only" versions. This option offers substantial savings over AC/DC models.
- True AC/DC, 110/220V power supply
- 75W AC mode /50W DC mode
- Peak wattage 100W AC mode/ 75W DC mode
- 109 dB clear sound
- Reaches crowds of 500+
- Up to two built-in 16 channel UHF wireless receivers
- "Voice over" music ducking feature
- 6.5" woven fiber woofer and high-output horn tweeter
- Two universal microphone jack inputs
- Recessed back panel protects knobs and ports
- UV treated / fade resistant case
- External speaker output powers companion speaker
- Charging LED bar indicator
- Rated Power Output 75W AC mode /50W DC mode
- Peak wattage 100W AC mode/ 75W DC mode
- Frequency Response 80 Hz – 16 kHz
- AC Power Reqs. 90 – 264 VAC, 50/60 Hz
- Dimensions (HWD) 17” x 10.5” x 9.5” (43 x 27 x 24 cm)
- Weight (AC/DC 23 lbs/ 10.4 Kg
- Weight (AC only) 16 lbs/ 7.25 Kg
- Mic Inputs (two combo):
Lo-Z (1 Kohm), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 Kohms), unbalanced, 1/4” phone
- Auxiliary (line) Hi-Z (10 Kohms), unbalanced, 1/8” stereo, 1/4” phone
- Line In/Out unbalanced, stereo RCA
- Line Output (post fader) isolated, 600 ohms, 1/4” phone
- Sensitivity For Rated Output:
Microphone (balance/unbalanced) -49 dBV (3.63 mVrms)
Auxiliary (line) -8.4 dBV (380 mVrms)
- Line (post fader) Lo-Z, buffered, 1/4”unbalanced/
- Speaker Out 4-pole Neutrik Speakon® jack
Anchor Audio products are warranted to be free from defects in materials and workmanship for a period of 6 years from the date of original purchase unless listed below:
a. All microphones, belt pack transmitters, and wood products (Seville & Admiral) shall be warranted for a 2 year period.
b. Batteries in the Beacon, Liberty Platinum, MegaVox Pro, Explorer Pro and Acclaim sound systems shall be warranted for a 2 year period.
c. PortaCom / ProLink 500 headsets / belt packs and CouncilMAN bases / mics shall be warranted for a 2 year period.
d. Little Big Horn shall be warranted for a two year period.
e. Built-in MP3 or CD players shall be warranted for a 2 year period.
And all warranties are subject to the following conditions:
f. The product must have been purchased from an authorized Anchor Audio Dealer and have an Anchor Audio serial number.
g. Anchor Audio must perform all warranty service. Any service performed without Anchor Audio's authorization will void the entire warranty.
h. This warranty does not cover any product that has been subjected to negligent use including considerate damage, connection to an improper power source, misuse, or operated beyond its manufactured specifications and limits, or has not been reasonably maintained.
j. Warranty shall not apply to batteries (other than those mentioned above), exterior finish, AC power cords, bulbs, or any other failings due to normal wear.
k. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.
l. This warranty excludes all damages or defects caused by shipping transportation, or incorrectly packing for shipment.
