Bigfoot Portable Line Array Sound System

for crowds of 5,000+

The Bigfoot® is the newest, biggest, and most powerful portable sound system on the market. Designed to cover a football field, this thunderous battery powered system is up to any challenge. With a 400 watt Class D amplifier and a line array consisting of five 8” neodymium speakers and one high efficiency neodymium compression driver, this bad boy packs a punch – yet easily sets up in seconds. The Bigfoot line array is now available with the all new AIR wireless transmitters and receivers .

Anchor Audio Bigfoot Packages, AIR Speaker Systems and Accessories

  • BIG-SINGLE
  • BIG-DUAL
  • BIG-TRIPLE
  • BIG-QUAD
  • AIR Speakers Systems and Accessories

BIG-SINGLE Package

BIG-SINGLE package with one (1) wireless microphone


Discount information
Includes:

One (1) BIG-8000CU1 Line array sound system
with bluetooth receiver, CD/MP3 combo player,

and choice of one (1) wireless microphone.

Click on images to enlarge

WH-6000 hand-held microphone transmitter
Hand-held mic
Optimal performance

Headband microphone
Headband mic
Optimal performance

UltraLite microphone
UltraLite mic
Use indoor only

Collar microphone
Collar Mic
Restricted head movements

Lapel microphone
Lapel mic
Reduced feedback margin



Select Wireless Microphone Style: Mic 1

Qty: Price  $ 3,320

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).

Bigfoot DUAL Package

BIG-DUAL package with two (2) wireless microphones


Discount information
Includes:

One (1) BIG-8000CU2 Line array sound system
with bluetooth receiver, CD/MP3 combo player,

and choice of two (2) wireless microphones.

Click on images to enlarge

WH-6000 hand-held microphone transmitter
Hand-held mic
Optimal performance

Headband microphone
Headband mic
Optimal performance

UltraLite microphone
UltraLite mic
Use indoor only

Collar microphone
Collar Mic
Restricted head movements

Lapel microphone
Lapel mic
Reduced feedback margin



Select Wireless Microphone Style: Mic 1 Mic 2

Qty: y Price  $ 3,800

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).

Bigfoot Triple Sound Systems Package

BIG-TRIPLE package with three (3) wireless microphones


Discount information
Includes:

One (1) BIG-8000CU3 Line array sound system
with bluetooth receiver, CD/MP3 combo player,

and choice of three (3) wireless microphones.

Click on images to enlarge

WH-6000 hand-held microphone transmitter
Hand-held mic
Optimal performance

Headband microphone
Headband mic
Optimal performance

UltraLite microphone
UltraLite mic
Use indoor only

Collar microphone
Collar Mic
Restricted head movements

Lapel microphone
Lapel mic
Reduced feedback margin



Select Wireless Microphone Style: Mic 1  Mic 2  Mic 3

Qty: Price  $ 4,280

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).

Bigfoot Quad Sound Systems Package

BIG-QUAD package with four (4) wireless microphones


Discount information
Includes:

One (1) BIG-8000CU4 Line array sound system
with bluetooth receiver, CD/MP3 combo player,

and choice of four (4) wireless microphones.

Click on images to enlarge.

WH-6000 hand-held microphone transmitter
Hand-held mic
Optimal performance

Headband microphone
Headband mic
Optimal performance

UltraLite microphone
UltraLite mic
Use indoor only

Collar microphone
Collar Mic
Restricted head movements

Lapel microphone
Lapel mic
Reduced feedback margin



Select Wireless Microphone Style: Mic 1  Mic 2  Mic 3  Mic 4

Qty: Price  $ 4,760

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).


Bigfoot ortable line array sound system

Discount indformation

AIR Wireless Transmitter Systems (microphones sold separately)
BIG-8000XU1 Bigfoot w/Bluetooth, AIR transmitter & 1 built-in UHF receiver
Qty: Price: $3,000
BIG-8000XU2 Bigfoot w/Bluetooth, AIR transmitter & 2 built-in UHF receivers
Qty: Price: $3,160
BIG-8000XU3 Bigfoot w/Bluetooth, AIR transmitter & 3 built-in UHF receivers
Qty: Price: $3,320
BIG-8000XU4 Bigfoot w/Bluetooth, AIR transmitter & 4 built-in UHF receivers
Qty: Price: $3,480

AIR Wireless Receiver Systems (microphones sold separately)
BIG-8000R Bigfoot w/Bluetooth receiver & AIR receiver
Qty: Price: $2,840
BIG-8000RU1 Bigfoot w/Bluetooth, AIR receiver & 1 built-in UHF receiver
Qty: Price: $3,000
BIG-8000RU2 Bigfoot w/Bluetooth, AIR receiver & 2 built-in UHF receivers
Qty: Price: $3,160
BIG-8000RU3 Bigfoot w/Bluetooth, AIR receiver & 3 built-in UHF receivers
Qty: Price: $3,320
BIG-8000RU4 Bigfoot w/Bluetooth, AIR receiver & 4 built-in UHF receivers
Qty: Price: $3,480

Free shipping Continental US for orders over $50

Wireless handheld microphone

WH-8000 Wireless handheld microphone (540 - 570 MHz)
Qty: Price: $320 (use with 8000 series and F1 suffix only )

Wireless handheld microphone

WH-6000 Wireless handheld microphone (682 - 698 MHz)
Qty: Price: $320 (use with 6000 and 7500 series only)

UHF wireless body-pack transmitter

WB-8000 Wireless belt pack transmitter (540 - 570 MHz)
Qty: Price: $240 (use with 8000 series and F1 suffix only )

UHF wireless body-pack transmitter

WB-6000 Wireless belt pack transmitter (682 - 698 MHz)
Qty: Price: $240 (use with 6000 and 7500 series only)

HBM-TA4F Headband microphone

HBM-TA4F Headset microphone for belt-pack transmitter
Qty: Price: $80

CM-60 collar microphone

CM-60 Collar microphone for belt-pack transmitter
Qty: Price: $80

EM-TA4F Ultralite over the ear microphone

EM-TA4F UltraLite Over-the-ear microphone for belt-pack transmitter
Qty: Price: $80

Lapel microphone

LM-60 Lapel microphone for belt-pack transmitter (includes clip)
Qty: Price: $80

LM60-CLP Clip for Lapel microphone
Qty: Price: $6

Anchor Audio 64-channel UHF system

UHF-7000US/HH Wireless receiver with handheld microphone
Qty: Price: $480

WH-7000US 64-Channel wireless handheld microphone
Qty: Price: $320

User Manual and Tech Data

Anchor Audio 64-channel UHF system

UHF-7000US/BP Wireless receiver w/belt-pack transmitter (mic sold separately)
Qty: Price: $400

WB-7000US 64-Channel wireless belt-pack transmitter (mic sold separately)
Qty: Price: $240

User Manual and Tech Data

Wired dynamic cardioid pattern handheld microphone

MIC-90 Wired dynamic handheld microphone with 20 ft cable and XLR plug
Qty: Price: $104

MIC-90P Wired dynamic handheld microphone with 20 ft cable and 1/4" plug
Qty: Price: $104

Wired dynamic handheld microphone

MIC-50 Dynamic handheld microphone with coiled cord and 1/4" plug
Qty: Price: $40

MSB-201 heavy duty mic stand

MSB-201 Anchor Audio Heavy-duty Microphone floor stand w/boom & mic clip
Qty: Price: $80

Wireless shock-mount mic clip

MY-325 Shock-mount clip for dynamic microphone (third party product)
Qty: Price: $15

Wireless shock-mount mic clip

MY-330 Shock-mount clip for wireless microphone (third party product)
Qty: Price: $15

MS7701 microphone stand

MS7701 Microphone stand w/boom - mic clip not included. (third party product)
Qty: Price: $40

Free shipping Continental US for orders over $50

3.5 mm stereo adaptor cable

6000-18PS Belt-pack to 3.5 mm stereo adaptor cable for wireless transmission
Qty: Price: $32

3.5 mm mono adaptor cable

6000-18P Belt-pack to 3.5 mm mono adaptor cable for wireless transmission
Qty: Price: $32

1/4" adaptor cable

6000-14P Belt-pack to 1/4" adaptor cable for wireless transmission
Qty: Price: $32

1/4 inch mono play-back cable

6000-xlr Belt-pack to XLR adaptor cable for wireless transmission
Qty: Price: $32

Speaker cable

Line-30M 30 ft line cable with 1/4" phone plugs
Qty: Price: $36

50 Ft XLR cable

XLR-50MF 50 ft XLR microphone cable
Qty: Price: $48

Beacon replacement battery

LIB-BAT Rechargeable Replacement Battery (2 ea. Beacon, 3 ea. BigFoot)
Qty: Price: $78

Free shipping Continental US for orders over $50



Go to top of page   View your cart

All about Bigfoot Line Array Sound System

Free Shipping Continental US on orders over $50

  • Description
  • Tech Data & Downloads
  • Bluetooth
  • Warranty

The new Bigfoot is the first Anchor Audio Portable Sound System that offers four built-in wireless receivers - allowing everyone to be involved! The patented, durable all-in-one portable design sets up in seconds. The enclosure includes five (5) 8" neodymium woofers and one (1) high efficiency compression driver. Simply unlock the line array and flip it open.Bigfoot Portable Sound System Then turn on the microphone, pair your bluetooth device or use the built-in media player and the system is ready to go. With a contoured handle grip, 8" wheels and storage compartments, the 75 lb Bigfoot can easily be wheeled around.

Wireless UHF Microphones: Bigfoot sound systems are available with up to four (4) built-in 16-channel wireless UHF receivers, each with a separate volume control. Centrum Sound stock only the DUAL and QUAD versions. Single and triple receiver unit are available upon request. The wireless UHF microphone transmitters are available in the conventional handheld style and belt-pack style with choice of headband mic, over the ear UltraLite microphone, collar mic, or, lapel microphone. Typical transmission range is up to 150 ft.

Bluetooth Receiver: The functionality, flexibility, and utility of Bigfoot sound system is greatly increased with Bluetooth capability which is standard on all models. The top-of-the-line Anchor Audio Bluetooth module allows you to connect your Bluetooth enabled device to the Bigfoot with incredible range and a strong connection.Bigfoot portable sound system - control panel open

Wired Input Connectivity: All Bigfoot sound systems feature two balanced XLR phantom powered microphone inputs and one AUX line input. The line input features a balanced 1/4" jack as well as a 3.5 mm stereo jack. Each of the three inputs have separate volume controls providing the user full control over the mix. The line level volume control also controls the MP3 player. For added flexibility, the the Bigfoot is also equipped with user adjustable bass and treble controls.

CD/MP3 Combo Player: A built-in combo MP3/CD player featuring all the controls of a conventional CD/MP3 player is standard on all Bigfoot packages. The MP3 player accepts SD Card and USB Flash Drive. In addition, the player is equipped with a 3.5 mm input jack for other audio sources such as iPods, lap tops, etc. The CD player includes a remote control.

Wired Output Connectivity: The Bigfoot features a 1/4" line level output for those wishing to record an event or simply daisy-chain two or more sound systems for greater coverage. Wireless Bigfoot control panelBigfoot systems may be deployed as long as these are placed within the transmission range of the wireless microphones. If music playback is desired for multiple wireless Bigfoot systems, a playback patch cord allows for hookup between a iPod, CD or cassette recorder and a belt-pack transmitter. A convenient USB port is also provided for charging of iPods, cell phones, etc.

Power: The rated power output is 400 watts in AC/DC mode. With true AC/DC power supply and a battery operating time of 6-8 hours, the Bigfoot is truly versatile. A charge circuit recharges drained batteries in 7 hours for a full charge with LEDs displaying the charge condition. AC operating requirement is 100 - 240 Volts 50/60 Hz, 300 Watts max.

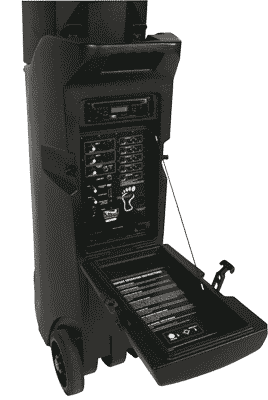

Click on image to enlarge

Description

The functionality, flexibility, and utility of your Anchor Audio Sound System or PA System is greatly increased with Bluetooth capability! The top-of-the-line Anchor Audio Bluetooth module allows you to connect your Bluetooth enabled device to your Anchor Audio system with incredible range and a strong connection. True to Anchor Audio character, operation is simple, and the applications are endless.

Operation and controls

Bluetooth call out sheet

  1. Volume control/Power ON (dial function switch):
    This knob turns ON the Bluetooth (BT) module as well as controls the volume. Volume can also be adjusted on your BT enabled device.
  2. Push button switch:
    Pushing the pairing button will make the BT module go into pairing mode for appx. 90 seconds (LED blinking). If no device is paired within that time, the BT module returns to sleep mode (LED off).
  3. LED:
    When the unit is powered on, it looks for the previously paired device and if found & discoverable, it connects this device (LED on). If the device is not found, it will return to sleep mode.
    • Sleep mode: LED off
    • Pairing mode: LED blinking
    • Device connected: LED on

Features

  • Bluetooth v3.0
  • Class 1 Radio
  • Range 100ft *- Line of Sight
  • +18dB PA Output RF Gain
  • +12dB LNA Input RF Gain
  • High Speed Wireless Data rate up to 3Mbps
  • Digital & Analog Stereo Input
  • Digital & Analog Stereo Output
Download Bluetooth Technical Specifications





















Q: How long is Anchor's product warranty?

A: Anchor Audio products are warranted to be free from defects in materials and workmanship for the period of SIX (6) YEARS from the date of original purchase unless listed below:

  1. Anchor Audio Bluetooth comes with a SIX (6) YEAR warranty period.
  2. All microphone and belt pack transmitters shall be warranted for a TWO (2) YEAR period.
  3. Batteries shall be warranted for a TWO (2) YEAR period.
  4. PortaCom and ProLink 500 headsets and belt packs shall be warranted for a TWO (2) YEAR period.
  5. CouncilMAN and Assistive Listening systems shall be warranted for a TWO (2) YEAR period.
  6. Built-in CD/MP3 players shall be warranted for a TWO (2) YEAR period.
  7. All woodworking shall be warranted for a TWO (2) YEAR period.
  8. All cases and covers shall be warranted for a TWO (2) YEAR period.
