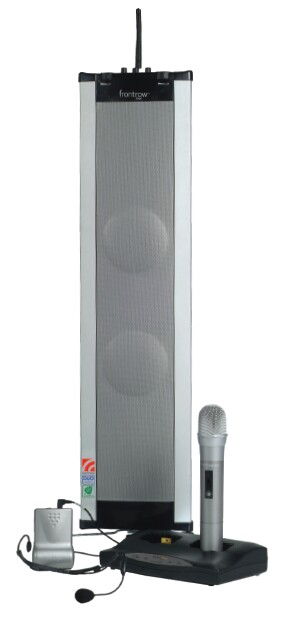

The FrontRow ToGo is a totally wireless portable PA system. Therefore, it is not only
perfect for amplification in classrooms but also suitable for general PA applications in areas that are not equipped with a house PA. It can be placed on a tabletop or
put on a floor stand.  Either way, set up is fast, simple, and convenient. The FrontRow ToGo is supplied with a pair of wall brackets for permanent installation. A quick release design lets you take it off the wall in seconds and place it on a table stand (also included) or an optional floor stand.
The FrontRow ToGo wireless PA system features
two built-in FM receivers operating in the 216 MHz band. Each receiver has eight user selectable channels for a total of
16 different frequencies. That means two instructors can teach using two hands-free wireless body-worn transmitters or two
handheld microphones simultaneously. Or, use a combination of one instructor's wireless body-worn transmitters and
a hand-held microphone transmitter to pass around between the students.
FrontRow ToGo provides up to 6.5 hours of completely wireless operating time. When done, just drop the wireless microphone
transmitter into the charger and connect the charging transformer to the loudspeaker. It can't get any simpler than that.
In the event of longer scheduled presentations, the wireless loudspeaker may be powered while it charges. Transmitters can
operate for more than 12 hours on a six hour charge but can also operate on regular AA size alkaline batteries.
The FrontRow ToGo high-quality directional loudspeakers provide full, clear sound. A separate volume control for each channel, an adjustable tone control, plus a volume control for the auxiliary input port gives teachers control over the classroom
auditory experience. MP3/CD players, TV or sound from other audiovisual sources can easily
be mixed in via the input port. An audio jack with a High/Low level switch provides audio output to recorders or other transmitters
for re broadcasting to other FrontRow loudspeakers or assistive listening devices.
The column speaker technology applied in the FrontRow ToGo sound system takes advantage of the effects of cancellation and
reinforcement that occur when spacing two loudspeaker cones a precise distance apart (phase angling). Because the FrontRow
ToGo speakers are phase angled, sound cancellation occurs at the top and bottom of the speaker enclosure. This reduces the
amount of sound reflecting off the floor and ceiling and therefore reduces reverberation. In addition, reinforcement occurs
at the center of the FrontRow ToGo speaker. The sound energy that would ordinarily bounce off the ceiling and floor is directed
in front of the speaker. This means that the sound from the FrontRow ToGo speakers drops only 4dB for every doubling of distance up to about
7m giving twice the audibility of a conventional speaker at the back of the classroom. |
- All-in-one system — receiver, speaker and battery integrated into one unit
- Installation-free — table stand or easy-install wall mount options
- SmartCharge fail-safe charging
- Completely portable — take it outside!
- Excellent sound quality and room coverage
- Intuitive controls and easy to operate
- OptiVoice Enabled (click on OptiVoice for short presentation)
- DuO technology (click on DuO for short video presentation)
- Lead-free construction (RoHS compliant)
- Dual FM receiver allows two transmitters to be used at once
- Auxiliary audio input for connectivity to other media
- Auxiliary audio output for connectivity to personal FM devices for the hearing impaired
|
925RS Dual-Receiver Column Speaker
- Carrier Frequency Range 216.025 - 216.875 MHz
- Modulation: FM (F3E)
- Output Power: Maximum 36W RMS @ 4Ω x 2
- Power requirements: AC 110-200V, ~50-60Hz, 1A max
- Battery: NiMH rechargeable
- Frequency response: 100Hz-9kHz (at rated output)
- Total harmonic distortion: <1% (at rated output) @ 1kHz
- System signal-to-noise ratio: >70db (at rated output)
- Input: 1 x aux-in, 3.5mm mono
- Output: 1 x aux-out, 3.5mm mono

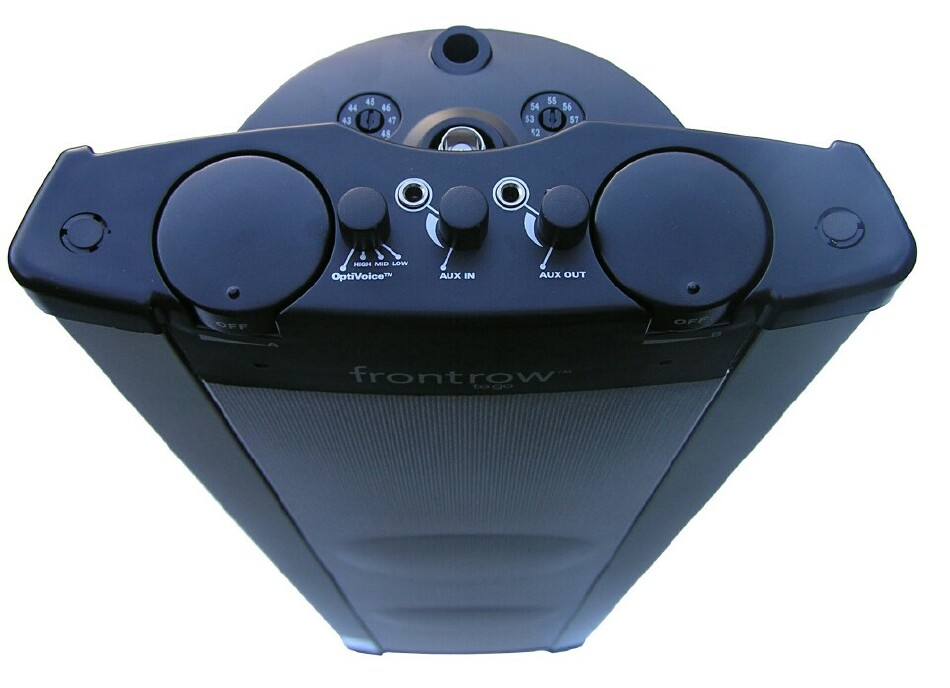

- Controls: Channel A/B on/off/volume, Channel A/B channel selector
Aux-in volume , Aux-out volume, OptiVoice, Main power
- Dimensions (wxdxh): 7.2 x 3.4 x 29.5 in, 183 x 85 x 750 mm
- Weight: 12.5 lbs. / 5.7 kg
- Battery operating time 6.5 hours (rechargeable)
- Recharging time 8 hours
925T Belt-Pack Transmitter
- Carrier frequency range: 216.025 - 216.875 MHz
- Modulation: FM (F3E)
- Operating Range: >110ft. / 34m
- RF Output: <15mW
- Total harmonic distortion: <0.5%
- Dynamic range: 100dB
- Dimensions (wxhxd): 2.5x3.5x1in/65x90x25mm
- Weight: 1.8oz/51g
- Controls: on/mute/off/channel selector
- Input/output: 2.5mm microphone input jack
- Battery type: 2 AA NiMH rechargeable (1600mA) or 2 AA alkaline disposable
- Battery life: NiMH rechargeable typically12 hours, disposable alkaline typically15 hours
- Recharging time: 6 hours

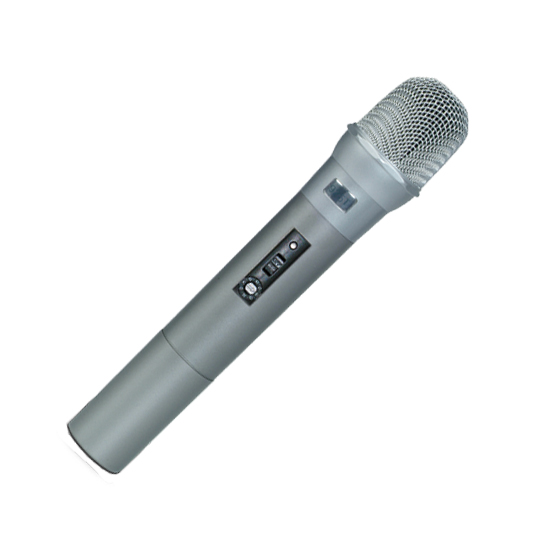

925H Hand-held Microphone/Transmitter
- Carrier frequency range: 216.025 - 216.875 MHz
- Modulation: FM (F3E)
- Operating Range: >110ft. / 34m
- RF Output: <15mW
- Total harmonic distortion: <0.5%
- Dynamic range: 100dB
- Dimensions (dia. x h): 2.1 x 9.3 in / 54 x 237mm
- Weight: 8.1 oz. / 230g
- Controls: on/mute/off/channel selector
- Battery type: 2 AA NiMH rechargeable (1600mA) or 2 AA alkaline disposable
- Battery life: NiMH rechargeable typically12 hours, disposable alkaline typically15 hours
- Recharging time: 6 hours

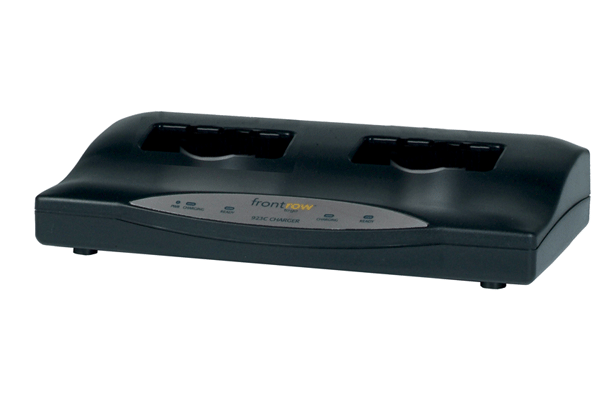

925C Charging Stand
- Power supply: AC adaptor (DC 12V / 0.5A)
- Indicator light: LED green = battery ready, LED red = charging, LED flashing red = charging error
- Recharging time: NiMH (1600mA), 6 hours
- Dimensions (WxHxD): 9 x 1.9 x 5.3in / 230 x 47 x 135mm
- Weight: 360g / 12.7oz
|
LIMITED WARRANTY
Subject to the conditions, exclusions and limitations described below, PHONIC EAR INC., acting through its FrontRow division (collectively, “FrontRow”), warrants to the original end user purchaser (“Customer”) that each FrontRow Active Learning System product (the “Product”), when operated and maintained according to the instructions attached to or furnished with the Product, will be free from defects in materials and workmanship under normal use, and agrees that it will, at its option, either repair any such defect or replace the nonconforming Product or part thereof with an equivalent replacement product or part at no charge to the Customer for parts or labor for the period(s) set forth below.
5-Year Limited Warranty. The above Warranty covers FrontRow Active Learning System components (transmitters, receivers, IR sensors, speakers and charging stands) for a period of FIVE (5) years beginning on the date of purchase by the Customer.
1-Year Limited Warranty. The above Warranty covers rechargeable batteries, power cords, power supplies, microphones, antennas and other accessories for a period of ONE (1) year beginning on the date of purchase by the Customer.
CONDITIONS. This Warranty is subject to the following conditions and restrictions:
• The Product must have been purchased from an authorized FrontRow Dealer or sales representative.
• FrontRow or an authorized Dealer must have performed all warranty service. Any service performed without the authorization of FrontRow or an authorized Dealer will void this entire Warranty.
• This Warranty does not cover any Product that has been subjected to abuse, misuse, alteration, neglect, unauthorized repair or installation, connection to an improper power source, operation beyond its manufactured specifications and limits, or subjected to improper site, preparation or maintenance not in accordance with manufacturer’s instructions.
• This Warranty is void if the Product has been subjected to adverse temperature, humidity or moisture, or otherwise operated outside its specified environment.
• This Warranty does not cover the finish or non-functional appearance of any Product.
For specific warranty information and/or additional extended
service agreements, download:
FrontRow
Limited Warranty
or
FrontRow Comprehensive Service Guide.
|
|
