AN-130+ Presentation Sound Systems by Anchor Audio

Command the classroom, dominate the board room, enthrall the lecture hall; you can do it all with the Anchor Audio AN-130+ presenter packages. This lightweight, easy to use system fills the room with your voice and with the wireless microphone option, you’re free to move around the room. Need to add some punch to your presentation? The AN-130+ is ideal for use with your video projector, CD/DVD player or PC. Teachers, corporate presenters, or anyone who needs to reach crowds of 150+ uses the AN-130+. Mount it on a stand, place it on a shelf, set the volume and you’re ready to go!


AN-130 Packages and Accessories

  •   Basic Package
  •   Presenter Package
  •   Wireless Presenter Package
  •   Options
  •   Accessories

   AN-130BP+ Basic Package with one wireless microphone

ClassACT Basic Package

Click here for discount indformation
Includes:
One (1) AN-130F1+ speaker monitor (black or white)
with built-in wireless receiver

and choice of

One (1) wireless microphone

To view all available options, click on Options Tab above.



Wireless Mic Option Color   Price: $686  Qty:

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).


   AN-130PP+ Presenter package with wired microphone

ClassACT Basic Package

Click here for discount indformation
Includes:
One (1) AN-130+ Speaker monitor (black or white)
One (1) MIC-90P Wired microphone with 20 ft cable
One (1) SS-250 Speaker stand

To view all available options, click on Options Tab above.



Color   Price: $406  Qty:

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).


   AN-130WPP+ Presenter package with wireless microphone

ClassACT Basic Package

Click here for discount indformation
Includes:
One (1) AN-130F1+ speaker monitor (black or white)
with one built-in wireless receiver
One (1) SS-250 Speaker stand
and choice of

One (1) wireless microphone

To view all available options, click on Options Tab above.



Wireless Mic Option Color   Price: $782  Qty:

Click "Add To Cart" to see Centrum Sound's discount price (no purchase necessary).



Wireless microphone options:

WH-6000 hand-held microphone transmitter
Hand-held   or
(optimal performance)

Belt-pack transmitter
Belt-pack   with
(WB-6000)

Headband microphone
Headband HBM-TA4F   or
(optimal performance)

UltraLite microphone
UltraLite EM-TA4F   or
(indoor only)

Collar microphone
Collar Mic CM-60   or
(limits head movements)

Lapel microphone
Lapel LM-60
(reduced feedback margin)



  Speaker colors:

   Black   Speaker Monitor Black       White  Speaker Monitor White


AN130 powered monitor - white

AN130 powered monitor - white



 AN-130+ Studio Speaker Monitor
     White  Qty:     Black  Qty: Price: $206


 AN-130F1+ Studio Speaker Monitor with wireless receiver
     White  Qty:     Black  Qty: Price: $366




Wireless handheld microphone

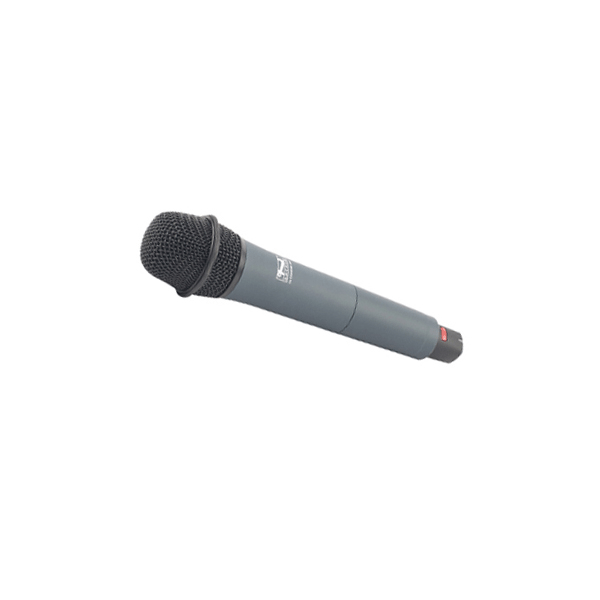

WH-8000 Wireless handheld microphone (540 - 570 MHz)
Qty: Price: $320 (use with 8000 series and F1 suffix only )

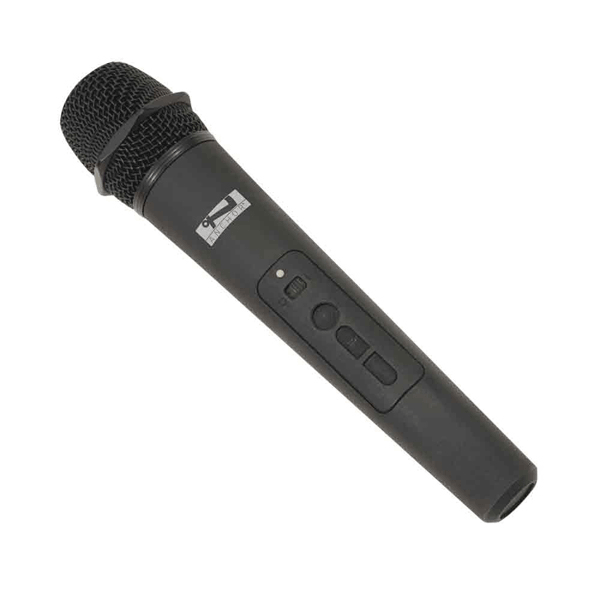

Wireless handheld microphone

WH-6000 Wireless handheld microphone (682 - 698 MHz)
Qty: Price: $320 (use with 6000 and 7500 series only)

UHF wireless body-pack transmitter

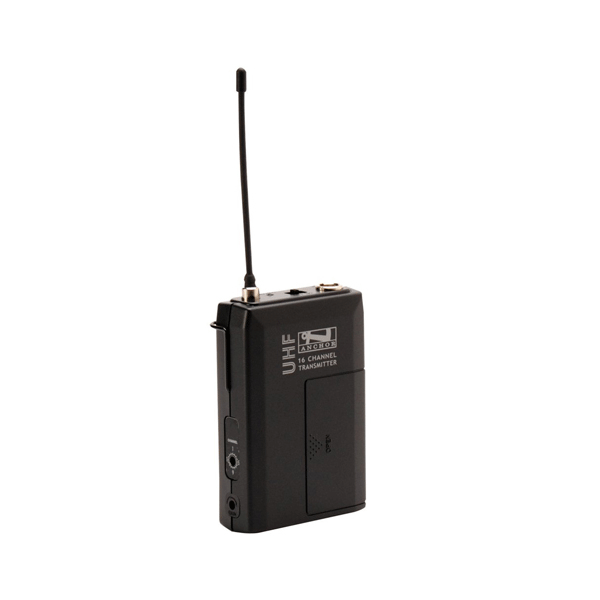

WB-8000 Wireless belt pack transmitter (540 - 570 MHz)
Qty: Price: $240 (use with 8000 series and F1 suffix only )

UHF wireless body-pack transmitter

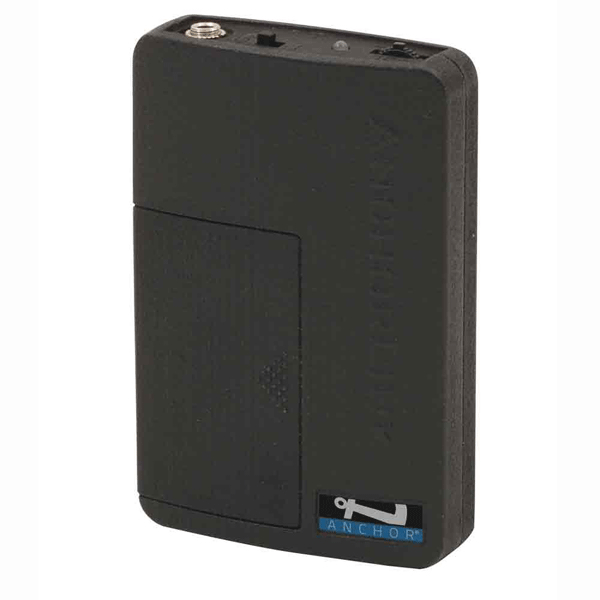

WB-6000 Wireless belt pack transmitter (682 - 698 MHz)
Qty: Price: $240 (use with 6000 and 7500 series only)

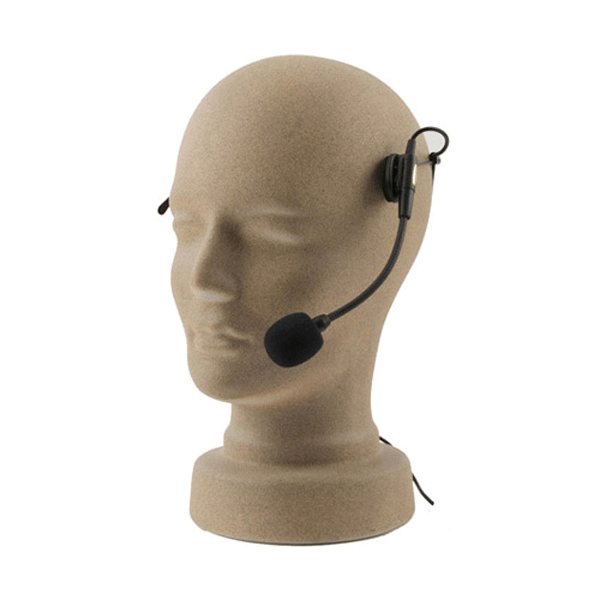

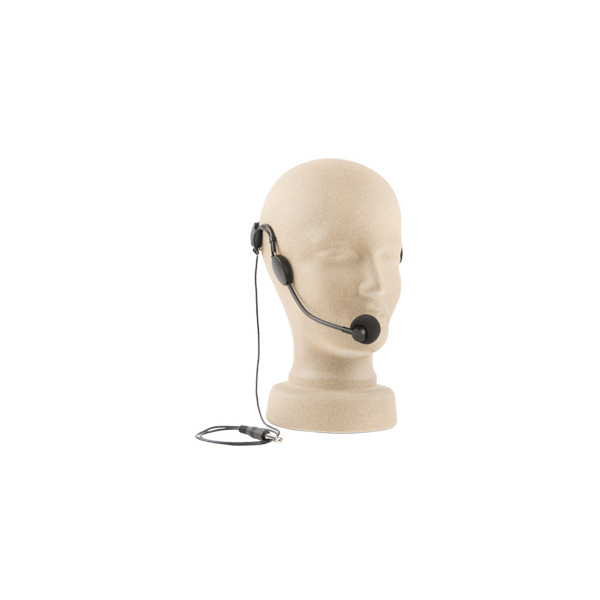

HBM-TA4F Headband microphone

HBM-TA4F Headset microphone for belt-pack transmitter
Qty: Price: $80

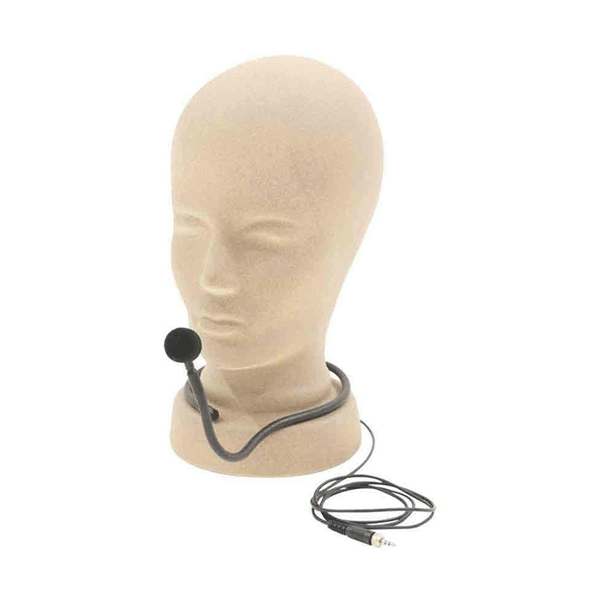

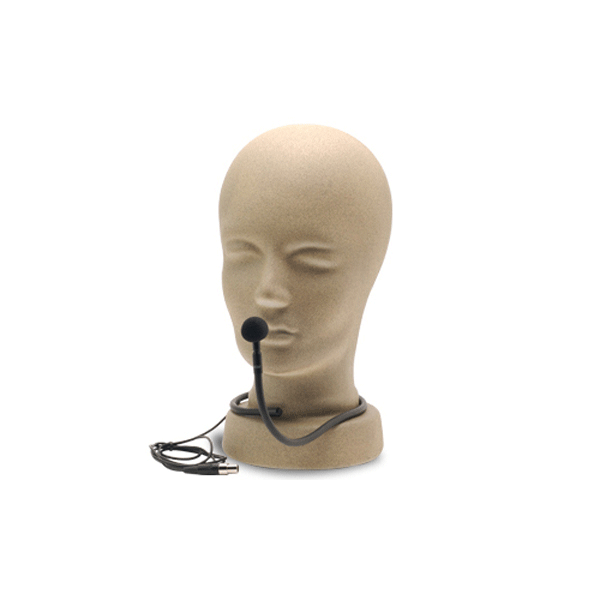

CM-60 collar microphone

CM-60 Collar microphone for belt-pack transmitter
Qty: Price: $80

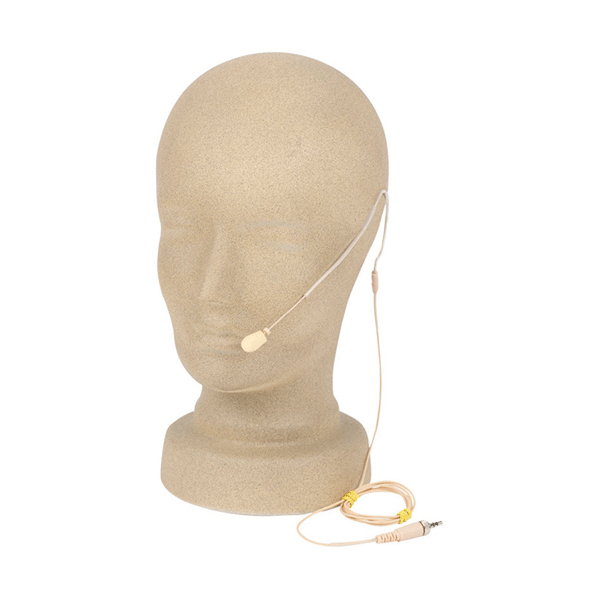

EM-TA4F Ultralite over the ear microphone

EM-TA4F UltraLite Over-the-ear microphone for belt-pack transmitter
Qty: Price: $80

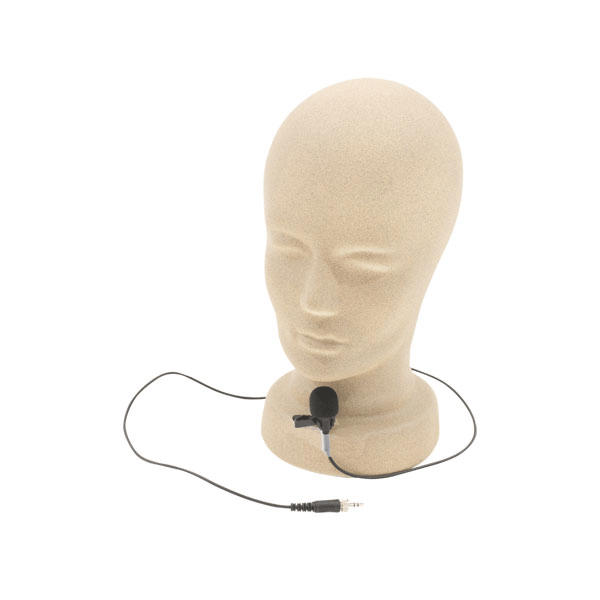

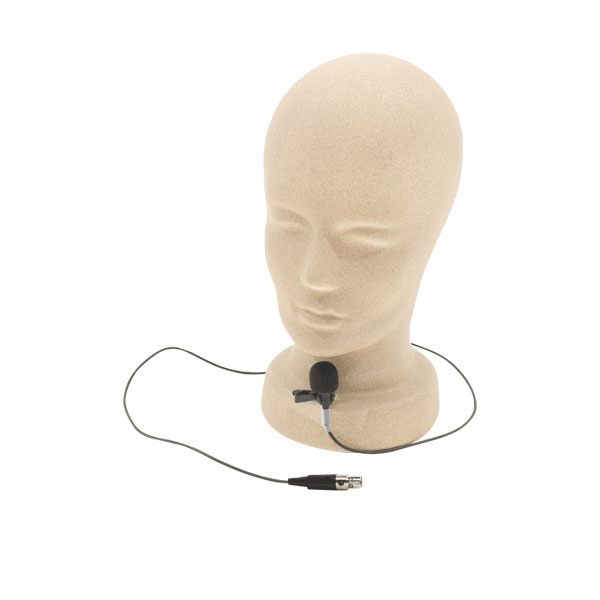

Lapel microphone

LM-60 Lapel microphone for belt-pack transmitter (includes clip)
Qty: Price: $80

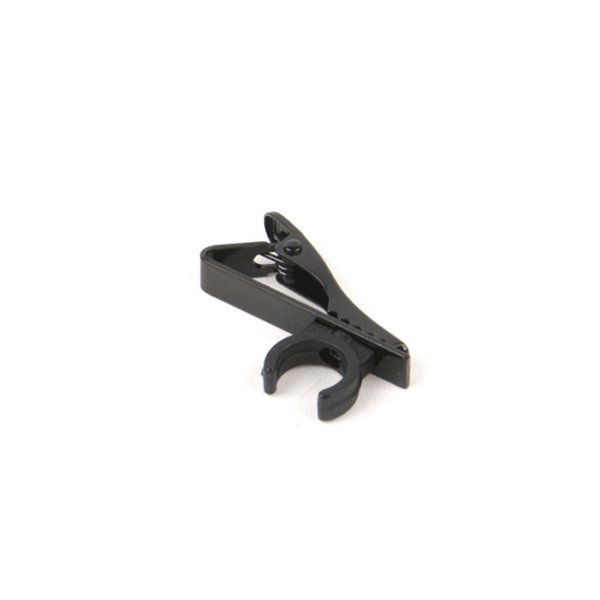

LM60-CLP Clip for Lapel microphone
Qty: Price: $6

Anchor Audio 64-channel UHF system

UHF-7000US/HH Wireless receiver with handheld microphone
Qty: Price: $480

WH-7000US 64-Channel wireless handheld microphone
Qty: Price: $320

User Manual and Tech Data

Anchor Audio 64-channel UHF system

UHF-7000US/BP Wireless receiver w/belt-pack transmitter (mic sold separately)
Qty: Price: $400

WB-7000US 64-Channel wireless belt-pack transmitter (mic sold separately)
Qty: Price: $240

User Manual and Tech Data

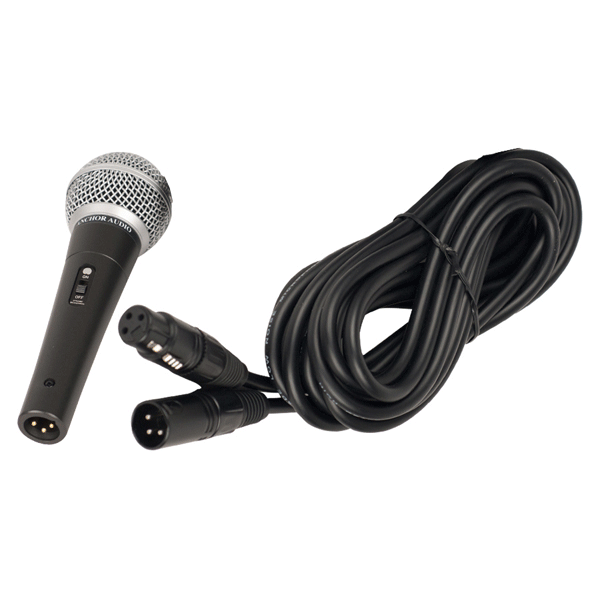

Wired dynamic cardioid pattern handheld microphone

MIC-90 Wired dynamic handheld microphone with 20 ft cable and XLR plug
Qty: Price: $104

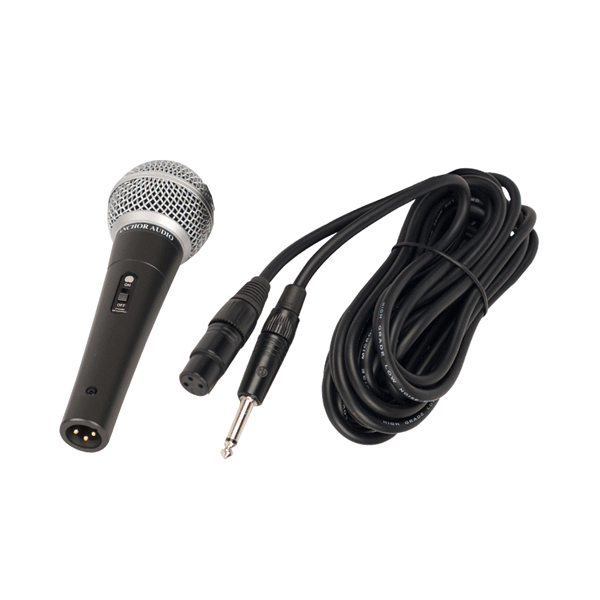

MIC-90P Wired dynamic handheld microphone with 20 ft cable and 1/4" plug
Qty: Price: $104

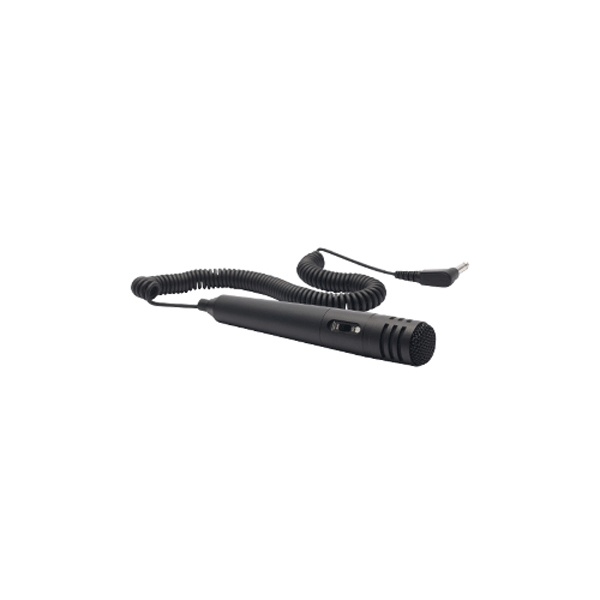

Wired dynamic handheld microphone

MIC-50 Dynamic handheld microphone with coiled cord and 1/4" plug
Qty: Price: $40

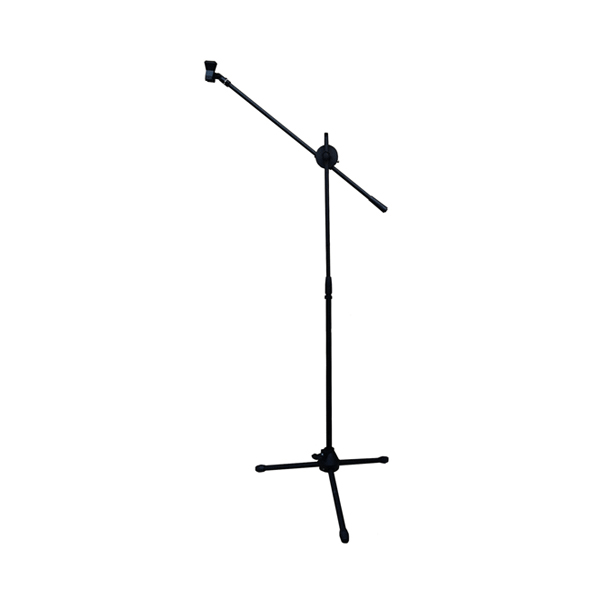

MSB-201 heavy duty mic stand

MSB-201 Anchor Audio Heavy-duty Microphone floor stand w/boom & mic clip
Qty: Price: $80

Wireless shock-mount mic clip

MY-325 Shock-mount clip for dynamic microphone (third party product)
Qty: Price: $15

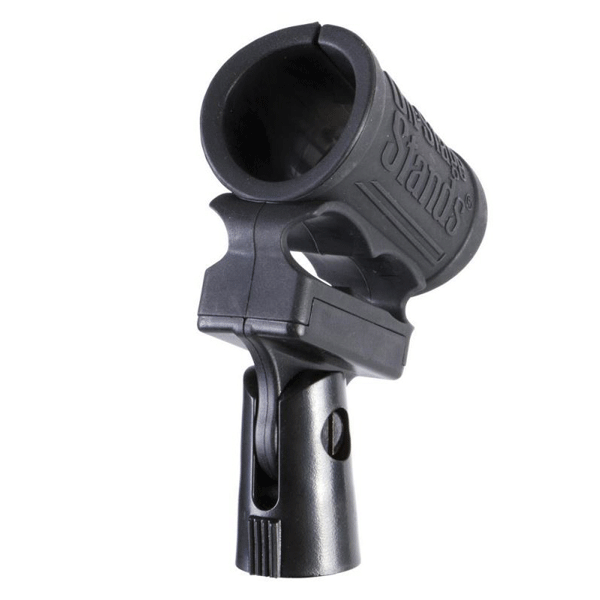

Wireless shock-mount mic clip

MY-330 Shock-mount clip for wireless microphone (third party product)
Qty: Price: $15

MS7701 microphone stand

MS7701 Microphone stand w/boom - mic clip not included. (third party product)
Qty: Price: $40

Accessories

Free shipping CONUS for orders over $50

1/4" adaptor cable

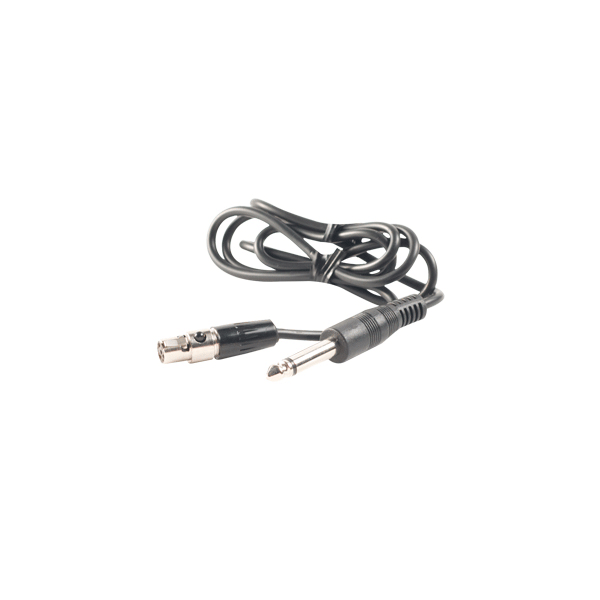

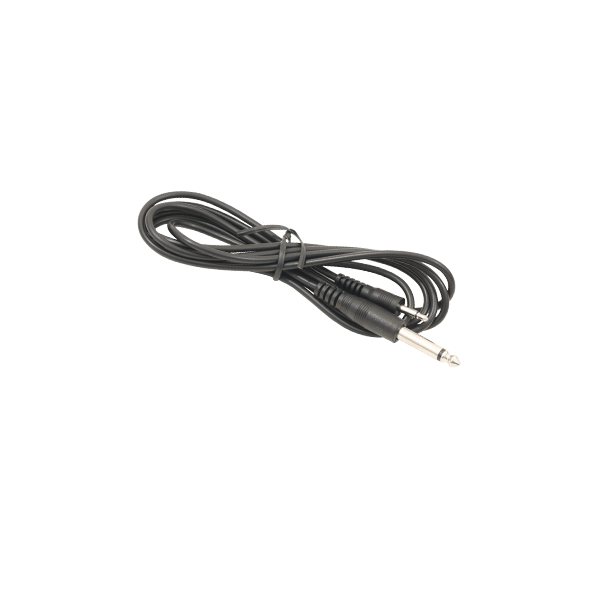

6000-14P Belt-pack to 1/4" adaptor cable for wireless transmission
Qty: Price: $32

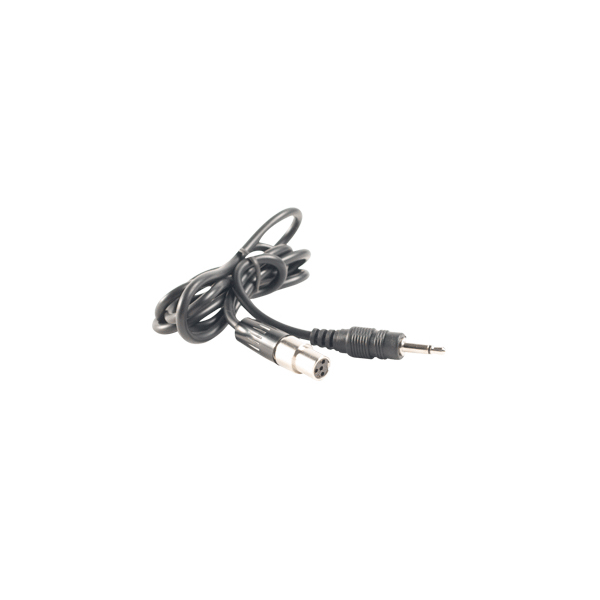

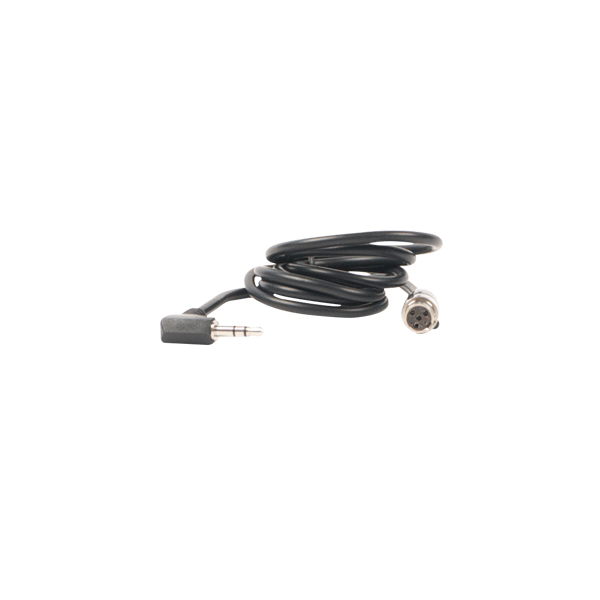

6000-18P Belt-pack to 1/8" (3.5 mm) adaptor cable for wireless transmission
Qty: Price: $32

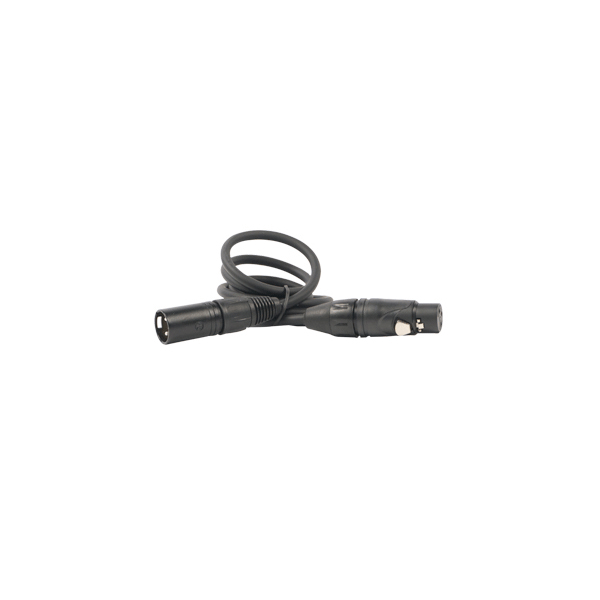

6000-XLR Belt-pack to XLR adaptor cable for wireless transmission
Qty: Price: $32

Stand mount bracket

SB-1BK Stand mount bracket with SS-250/SS-300 adaptors, black (AN-1000 series).
Price: Was $61 Discontinued

Stand mount bracket

SB-3 40° Tilt ceiling/desktop bracket - black or white
Qty: Black   Qty: White   Price: $28

Stand mount bracket

SB-360 360° Swivel wall-mount bracket- black or white
Qty: Black   Qty: White   Price: $32

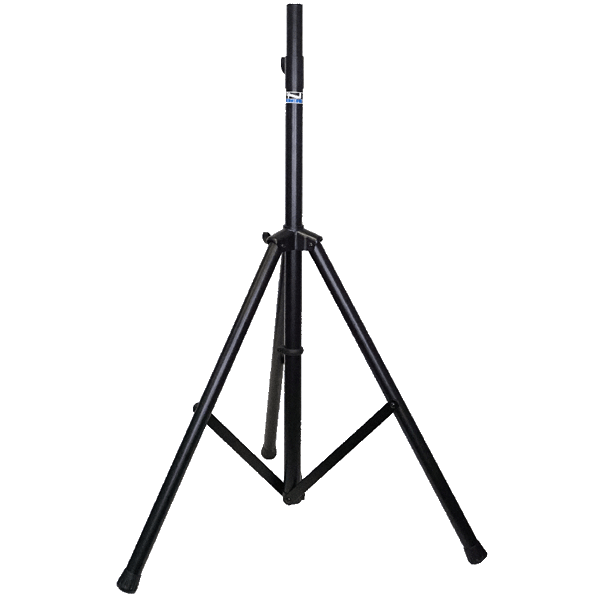

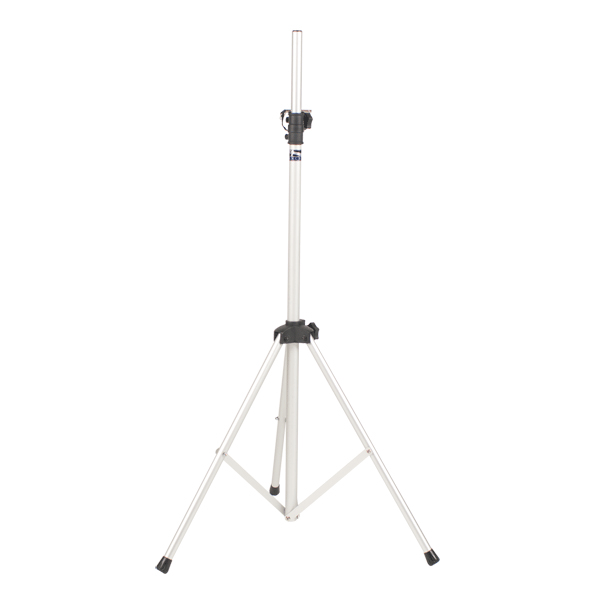

SS-250 Speaker stand

SS-250 Speaker stand
Qty: Price: $96

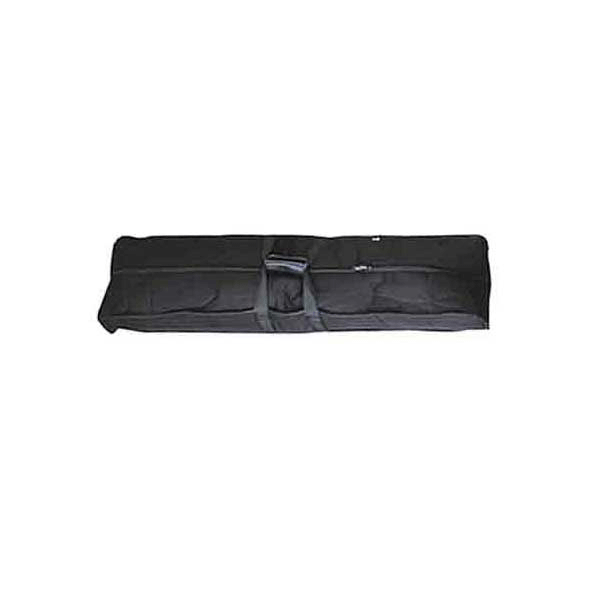

AN-130 Carry bag

CC-100 Carrying bag for AN-130+
Qty: Price: $40

Stand mount bracket

CC-100XL Extra large bag for AN-130B & SB-1BK
Qty: Price: $48

Free shipping CONUS for orders over $50

Go to top of page   View your cart

All about the AN-130 presentation speaker monitors

Free Shipping CONUS on orders over $50

  • Description
  • Features
  • Tech Data
  • Warranty
  • Product Video
  • Printouts

The AN-130+ wireless presenter package by Anchor Audio delivers up to 106 dB of clear sound and is perfect for speech projection in classrooms and conference rooms up to 1,000 square feet in size. Operation is simple. The front panel is equipped with volume,AN-130+ front view bass and treble controls. The optional AN-130RC versions have infrared sensors for a remote volume control. The AN-130U1+ version has a built-in UHF wireless microphone receiver. The wireless microphone can be handheld or for hands-free operation, a body-pack transmitter equipped with choice of headband mic, over the ear UltraLite microphone, collar mic, or lapel microphone. To avoid potential interference should several wireless sound systems be employed in close proximity, all UHF components have 16 user selectable channels. Typical range is 150 ft.

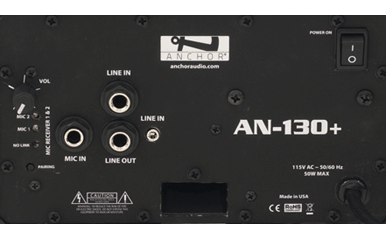

AN-130U! rear panelTheAN-130+ Studio speakers are equipped with a 1/4" Lo-Z microphone input jack for use with an optional wired microphone such as MIC-90 or MIC-50. External audio presentation sources, lap tops, CD/tape or MP3 players may be connected via separate RCA and 1/4" line input jacks. For perfect balance between speech an media input, the line input has a separate volume control.

A number of optional brackets are available. These include the SB-3 40° tilt bracket and SB-360 360° swivel bracket. To view these items along with floor stands, carry bags and other available accessories, click on the "Accessories" tab.


AC powered
106 dB of clear sound
Reaches crowds of 100+
Lightweight only 9 lbs.
Magnetically shielded speaker for AV use
4.5" woofer and 10 mm dome tweeter
30W amplifier
Optional built-in 16 channel UHF wireless receiver
RCA line input, 1/4" line input and 1/4" Mic-In
1/4" line output jack - daisy chain multiple systems or record output
Remote control for volume and mute available
Bass and treble controls
Available in black or white
















Rated Power Output 30 watts
Max SPL @ Rated Power 103 dB @ 1 meter
Frequency Response 65 Hz – 18 kHz ± 3 dB
Speaker Type 4.5” woofer, 10 mm dome tweeter
AC Power Reqs. 110 – 125 VAC, 50/60 Hz
Export Model 208 – 240 VAC, 50/60 Hz (50W max)
Fuse Rating T 1.0A / 250V
Export Model T 0.5A / 250V (internally mounted)
Dimensions (HWD) 5.25” x 8.4” x 9” (13 x 21 x 23 cm)
Weight 8.5 lbs / 3.8 Kg
Inputs:
      Line (2) Hi-Z, unbalanced
      Microphone Lo-Z, unbalanced, 1/4” phone
Output:
      Line Lo-Z, buffered, 1/4” phone
Sensitivity For Rated Output:
      Line -20 dBV (100 mVrms)
      Microphone -43 dBV (7.5 mVrms)










Anchor Audio products are warranted to be free from defects in materials and workmanship for a period of 6 years from the date of original purchase unless listed below:

Warranty Statement

a. All microphones, belt pack transmitters, and wood products (Seville & Admiral) shall be warranted for a 2 year period.

b. Batteries in the Beacon, Liberty Platinum, MegaVox Pro, Explorer Pro and Acclaim sound systems shall be warranted for a 2 year period.

c. PortaCom / ProLink 500 headsets / belt packs and CouncilMAN bases / mics shall be warranted for a 2 year period.

d. Little Big Horn shall be warranted for a two year period.

e. Built-in MP3 or CD players shall be warranted for a 2 year period.

And all warranties are subject to the following conditions:

f. The product must have been purchased from an authorized Anchor Audio Dealer and have an Anchor Audio serial number.

g. Anchor Audio must perform all warranty service. Any service performed without Anchor Audio's authorization will void the entire warranty.

h. This warranty does not cover any product that has been subjected to negligent use including considerate damage, connection to an improper power source, misuse, or operated beyond its manufactured specifications and limits, or has not been reasonably maintained.

j. Warranty shall not apply to batteries (other than those mentioned above), exterior finish, AC power cords, bulbs, or any other failings due to normal wear.

k. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.

l. This warranty excludes all damages or defects caused by shipping transportation, or incorrectly packing for shipment.
