MiniVox Lite Compact PA System by Anchor Audio

for crowds up to 50 people with 30 watts of power and true AC/DC operation

Want the most convenient little wireless PA system with 16 UHF user-selectable channels that still delivers that crystal clear Anchor Audio sound? Look no further than the MiniVox Lite battery powered PA system. Tour guides, auctioneers and cheerleaders all over the U.S. rely on the power and light weight of the MiniVox Lite for their everyday activities.
Toll free 888.736.6005 7-5 PSTHomeClick here to contact us via email


Pre-packaged systems and accesories

  • MiniVox-Lite Basic Package
  • MiniVox-Lite DeLuxe package
  • AN-Mini Deluxe Package
  • Options
  • Accessories
  • Speakers


MiniVox Lite Basic Package "LITE-BP" includes:

MiniVox Lite basic package

Click here for discount indformation

AN-MINI speaker monitor, MIC-50 wired microphone, RC-30
battery recharge kit, and Soft-30 soft case with shoulder strap.


To view available options, click on Options Tab above


Soft case color:  Qty:    MAP* $335


MiniVox Lite Deluxe Package "LITE-DP" includes:

MiniVox Lite Deluxe package

Click here for discount indformation

AN-MINIU1 speaker monitor with built in wireless receiver, MIC-50
wired microphone, RC-30 battery recharge kit, Soft-30 soft case
with shoulder strap and choice of wireless microphone.

To view available options, click on Options Tab above


Soft case color: Wireless MIC:   Qty:    MAP* $815


AN-Mini Deluxe with Wireless Microphone "AN-MINIDP" includes:

MiniVox Lite Deluxe package

Click here for discount indformation

AN-MINIU1 speaker monitor with built in wireless receiver, RC-30
battery recharge kit and choice of wireless microphone.
(MIC-50 and Soft-30 not included)

To view available options, click on Options Tab above


Wireless microphone style:   Qty:    MAP* $735



  Wireless microphone options (Deluxe packages only).

WH-6000 hand-held microphone transmitter
Hand-held   or
(optimal performance)

Belt-pack transmitter
Belt-pack   with
(WB-6000)

Headband microphone
Headband HBM-TA4F   or
(optimal performance)

UltraLite microphone
UltraLite EM-TA4F   or
(indoor only)

Collar microphone
Collar Mic CM-60   or
(limits head movements)

Lapel microphone
Lapel LM-60
(reduced feedback margin)



 Soft cases are available in Black, Blue, Red, Camo and Neon Yellow (LiteBP and LiteDP only).

Soft-30 color options


 Optional Audio input cords for wireless transmission with belt-pack can be purchased under the "accessories" tab

Belt-pack transmitter
Belt-pack   with
(WB-6000)

3.5mm stereo play-back cable
6000-18PS 1/8" Stereo
Typical use: iPod, laptop

3.5mm mono play-back cable
6000-18P 1/8" Mono
Typical use: Metronome

1/4 inch mono play-back cable
6000-14P 1/4" Mono
Typical use: Transmission from LINE out

1/4 inch mono play-back cable
6000-XLR Female
Typical use: From balanced OUT



HBM-TA4F Headband microphone

HBM-Mini Wired headset microphone for MiniVox (3.5 mm plug)
Qty: Price: $80

Wireless handheld microphone

WH-6000 Wireless handheld microphone
Qty: Price: $320

UHF wireless body-pack transmitter

WB-6000 Wireless belt pack transmitter
Qty: Price: $240

HBM-TA4F Headband microphone

HBM-TA4F Headset microphone for belt-pack transmitter
Qty: Price: $80

LM-60 Lapel microphone

Clip for LM-60 Lapel microphone

LM-60 Lapel microphone for belt-pack transmitter (includes clip)
Qty: Price: $80

LM60-CLP Clip for Lapel microphone
Qty: Price: $6

CM-60 collar microphone

CM-60 Collar microphone for belt-pack transmitter
Qty: Price: $80

EM-60T Ultralite over the ear microphone

EM-TA4F UltraLite Over-the-ear microphone for belt-pack transmitter
Qty: Price: $80

Anchor Audio 64-channel UHF system

UHF-7000US/HH Wireless receiver with handheld microphone
Qty: Price: $480

WH-7000US 64-Channel wireless handheld microphone
Qty: Price: $320

User Manual and Tech Data

Anchor Audio 64-channel UHF system

UHF-7000US/BP Wireless receiver w/belt-pack transmitter (mic sold separately)
Qty: Price: $320

WB-7000US 64-Channel wireless belt-pack transmitter (mic sold separately)
Qty: Price: $240

User Manual and Tech Data

Wired dynamic cardioid pattern handheld microphone

MIC-90 Wired dynamic handheld microphone with 20 ft cable and XLR plug
Qty: Price: $104

MIC-90P Wired dynamic handheld microphone with 20 ft cable and 1/4" plug
Qty: Price: $104

Wired dynamic handheld microphone

MIC-50 Dynamic handheld microphone with coiled cord and 1/4" plug
Qty: Price: $40

MSB-201 heavy duty mic stand

MSB-201 Anchor Audio Heavy-duty Microphone stand w/boom & mic clip
Qty: Price: $80

Wireless shock-mount mic clip

MY-325 Shock-mount clip for dynamic microphone (third party product)
Qty: Price: $15

Wireless shock-mount mic clip

MY-330 Shock-mount clip for wireless microphone (third party product)
Qty: Price: $15

SS-300 Speaker stand

MS7701 Microphone stand w/boom - mic clip not included. (third party product)
Qty: Price: $40

1/4" adaptor cable

6000-14P Belt-pack to 1/4" adaptor cable for wireless transmission
Qty: Price: $32

6000-18P Belt-pack to 1/8" (3.5 mm) adaptor cable for wireless transmission
Qty: Price: $32

6000-XLR Belt-pack to XLR adaptor cable for wireless transmission
Qty: Price: $32

SS-300 Speaker stand

SS-300 Speaker stand for AN-MINI
Qty: Price: $64

AC-30 charging transformer

AC-30 Charging transformer
Qty: Price: $20

RC-30 Recharge kit

RC-30 Recharge kit with AC-30 and 10 2500 mAh NiMH batteries
Qty: Price: $60

MiniVox Lite SOFT-30, black

SOFT-30 Soft Case for AN-Mini
Qty: Price: $40

Free shipping Continental US for orders over $50

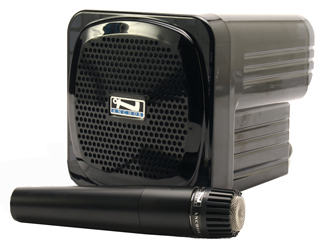

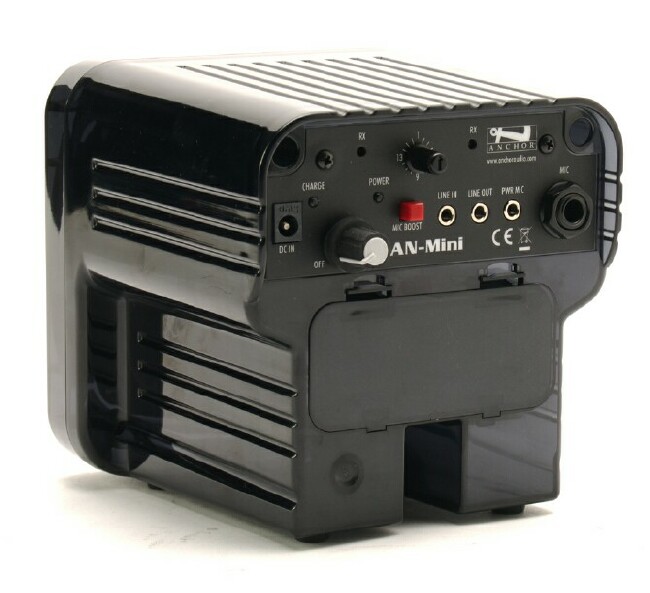

MiniVox Lite monitor


AN-MINI MiniVox Lite Monitor - no accessories included
Qty: Price: $195


AN-MINIU1 MiniVox Lite Monitor with wireless receiver - no accessories included
Qty: Price: $355


*) Manufacturer's minimum advertised price.   See our discount price in cart.   Additional GOV/EDU discount may apply

All about MiniVox Lite

Free shipping Continental US

View Cart


  • Description
  • Features
  • Tech Data
  • Warranty
  • Product Video
  • Printouts
  • Similar Products

The battery powered MiniVox Lite by Anchor Audio delivers up to 100 dB of clear sound and is perfect for speech projection in indoor or outdoor settings. Operation is simple. A volume control with on/off switch and a Mic Boost button constitute the only user operated controls.MiniVoxLite User When pushed in, the Mic Boost adds a boost to your voice when speaking to a larger crowd in a noisy environment. Equipped with a shoulder strap and weighing in at less than four pounds, the MiniVox Lite is the perfect PA system for users who demand a convenient portable package with big sound.

Wireless Microphone option: MiniVox sAN-Mini Monitorystems may be equipped with an optional built-in UHF wireless microphone receiver. The wireless microphone is available in a handheld version or a body-pack transmitter equipped with choice of lapel mic, collar mic, headband mic, or overthe ear UltraLite microphone. To avoid potential interference should several wireless sound systems be employed in close proximity, all UHF components have 16 user selectable channels.Typical transmission range is 200 ft.

Inputs: All MiniVox Lite models are equipped with a handheld microphone with coiled cord connected to an unbalanced 1/4" Lo-Z microphone input jack. A separate 3.5 mm mini-jack with phantom power permits use of other electret-type microphones such as headband microphones. In addition, all models feature a 3.5 mm mini-jack line level input for use with an external CD/tape or MP3 players. Click on image to view rear panel.

Outputs:A high-efficiency 4.5" neodymium woofer and a 30 watt amplifier makes the MiniVox Lite capable of delivering up to 109 dB SPL. Although the MiniVox Lite is not equipped with an output for an external loudspeaker, greater sound distribution can be achieved with the use of a wireless microphone. Simply place multiple MiniVox Lite systems with built-in wireless receivers within the transmission range of the wireless microphone.

Power Source: The MiniVox Lite operates up to 12 hours on fully charged batteries (10 AA size 2500 mAh NiMH batteries). A charge jack permits recharging without removing the batteries. Charging time is 4-6 hours. The MiniVox Lite may be used while the AC charging adaptor is plugged in.


  • AC/DC powered
  • 100 dB of clear sound
  • 30W amplifier
  • Reaches crowds of 100+
  • Lightweight - only 5 lbs.
  • Optional built-in 16 channel UHF wireless receiver
  • 4.5" woofer
  • Line input allows you to plug in an iPod, MP3 and CD player
  • Phantom-powered input for electret-type microphone
  • Operates on batteries for up to 12 hours
  • Rechargeable battery kit (included with all pre-packaged systems)


































Rated Power Output 30 Watts
Max SPL@Rated Power 100 dB @ 1 meter
Frequency Response 100Hz - 15KHz ±3dB
Speaker Type 4.5” Neodymium woofer
Battery Type Ten ‘AA’ alkaline
Dimensions (HWD) 5.5” x 5.5” x 6.5”
(14 x 14 x 16.5 cm)
Weight 2.5 lbs / 1.13 Kg
Output: Line line level, 3.5 mm
Inputs: Line line level, 3.5 mm
           Powered Microphone Lo-Z phantom power, 3.5 mm jack
           Microphone Lo-Z, 1/4” phone
RC-30 – Recharge Kit (optional)
Battery Type Ten ‘AA’ size, NiMH 2.5 Ah
Charger AC-30
AC-30 Input 120 VAC, 60Hz, 24 watt max
AC-30/220 Input 220 VAC, 50Hz, 24 watt max
Shipping Weight 3 lbs / 1.4 Kg




























Anchor Audio products are warranted to be free from defects in materials and workmanship for a period of 6 years from the date of original purchase unless listed below:

Warranty Statement

a. All microphones, belt pack transmitters, and wood products (Seville & Admiral) shall be warranted for a 2 year period.

b. Batteries in the Beacon, Liberty Platinum, MegaVox Pro, Explorer Pro and Acclaim sound systems shall be warranted for a 2 year period.

c. PortaCom / ProLink 500 headsets / belt packs and CouncilMAN bases / mics shall be warranted for a 2 year period.

d. Little Big Horn shall be warranted for a two year period.

e. Built-in MP3 or CD players shall be warranted for a 2 year period.

And all warranties are subject to the following conditions:

f. The product must have been purchased from an authorized Anchor Audio Dealer and have an Anchor Audio serial number.

g. Anchor Audio must perform all warranty service. Any service performed without Anchor Audio's authorization will void the entire warranty.

h. This warranty does not cover any product that has been subjected to negligent use including considerate damage, connection to an improper power source, misuse, or operated beyond its manufactured specifications and limits, or has not been reasonably maintained.

j. Warranty shall not apply to batteries (other than those mentioned above), exterior finish, AC power cords, bulbs, or any other failings due to normal wear.

k. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.

l. This warranty excludes all damages or defects caused by shipping transportation, or incorrectly packing for shipment.












Watch the AN-Mini / MiniVoxLite Product Video
